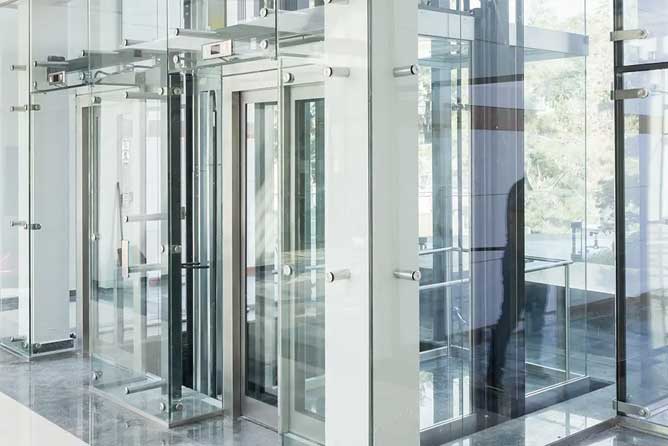

Hydraulic Elevator

Hydraulic Elevator s are elevators which are powered by a piston that travels inside a cylinder. An electric motor pumps hydraulic oil into the cylinder to move the piston. The piston smoothly lifts the elevator cab. Electrical valves control the release of the oil for a gentle descent.

Hydraulic Elevator s are used extensively in buildings up to five or six stories high. Sometimes, but rarely, up to 8 stories high. These elevators, which can operate at speeds up to 61 meters (200 ft) per minute, do not use the large overhead hoisting machinery the way geared and gearless traction systems do.

Holeless Type Model 1
It is single side direct suspension with a simple piston
for regular loads and short travels of maximum 4 meters
Person	Capacity	Shaft	Shaft	Car	Car
Person	Kg	W	D	W	D
3	225	1500	1500	800	900
4	300	1550	1550	850	1050
5	375	1700	1700	1000	1100
6	450	1800	1800	1100	1150
8	600	1800	1800	1100	1400
10	750	1900	1900	1200	1550
12	900	2000	2000	1300	1650
15	1125	2000	2000	1300	2000
20	1600	2100	2100	1400	2400

Holeless Type Model 2
It is single side direct suspension with a simple piston
for regular loads and short travels of maximum 4 meters
Person	Capacity	Shaft	Shaft	Car	Car
Person	Kg	W	D	W	D
3	225	1500	1500	800	900
4	300	1550	1550	850	1050
5	375	1700	1700	1000	1100
6	450	1800	1800	1100	1150
8	600	1800	1800	1100	1400
10	750	1900	1900	1200	1550
12	900	2000	2000	1300	1650
15	1125	2000	2000	1300	2000
20	1600	2100	2100	1400	2400
